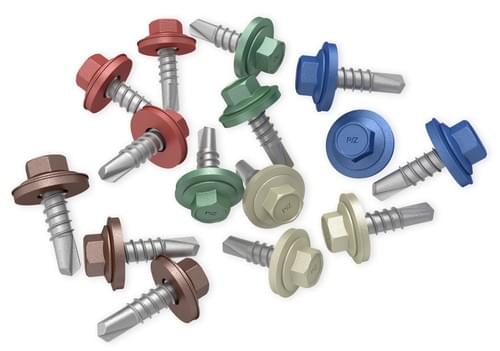

Hex Flange Painted Coarse Thread Self-Drilling Screw
Material: Carbon Steel (1022A)
Dimensions:
Diameter: 5.5mm
Length Range: 25–300mm (Standard: 25/32/38/45/50/65/75/100/125/150/165/175/200/300)
Key Features:
Baked Epoxy Coating: Superior corrosion resistance with salt spray protection up to 1500H (Class 3 & 4 per ISO 9227).
Hex Flange Design: Eliminates need for washers and ensures secure fastening.
Self-Drilling Tip: Coarse thread cuts efficiently into metal substrates (up to 3mm thickness).
Applications:
Heavy-duty construction, steel framing, and industrial equipment exposed to harsh weather.
Standards: ASTM F568M, DIN 7500.
