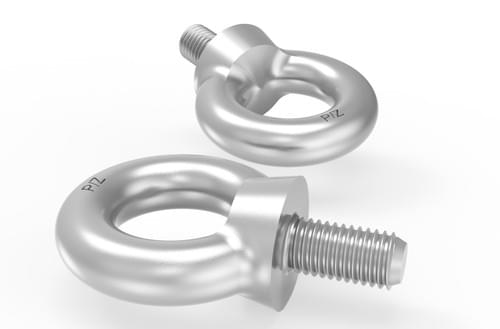

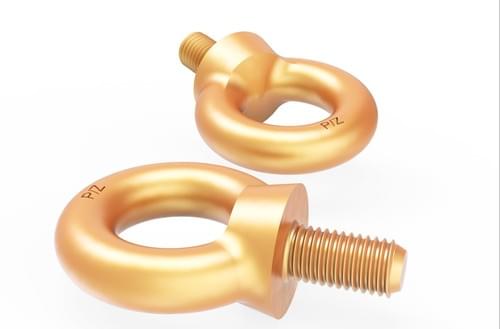

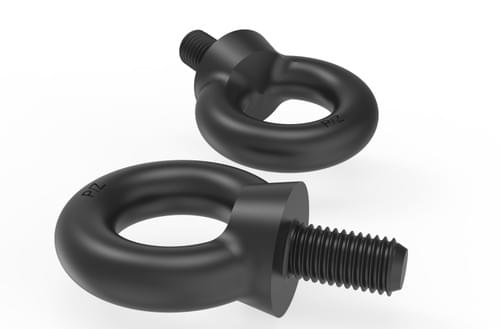

DIN580 Eye Bolt
Material: Q235 Carbon Steel / 35CrO & 40CrMo Alloy Steel / 302/304/316 Stainless Steel
Specifications:
Diameter Range: M8–M64 (Standard sizes: M8/10/12/16/20/22/24/30/36/42/48/56/64)
Surface Finish: Black Oxide, Galvanized, or Stainless Steel Natural
Key Features:
Heavy-Duty Strength: Suitable for loads up to 25 tons (material-dependent).
Corrosion Resistance: Stainless steel grades and coatings meet ISO 9227 standards.
Safety Compliance: Precision-engineered per DIN580 for secure overhead lifting.
Applications:
Industrial rigging, shipbuilding, construction cranes, and machinery assembly.
Specifications:
Diameter Range: M8–M64 (Standard sizes: M8/10/12/16/20/22/24/30/36/42/48/56/64)
Surface Finish: Black Oxide, Galvanized, or Stainless Steel Natural
Key Features:
Heavy-Duty Strength: Suitable for loads up to 25 tons (material-dependent).
Corrosion Resistance: Stainless steel grades and coatings meet ISO 9227 standards.
Safety Compliance: Precision-engineered per DIN580 for secure overhead lifting.
Applications:
Industrial rigging, shipbuilding, construction cranes, and machinery assembly.
